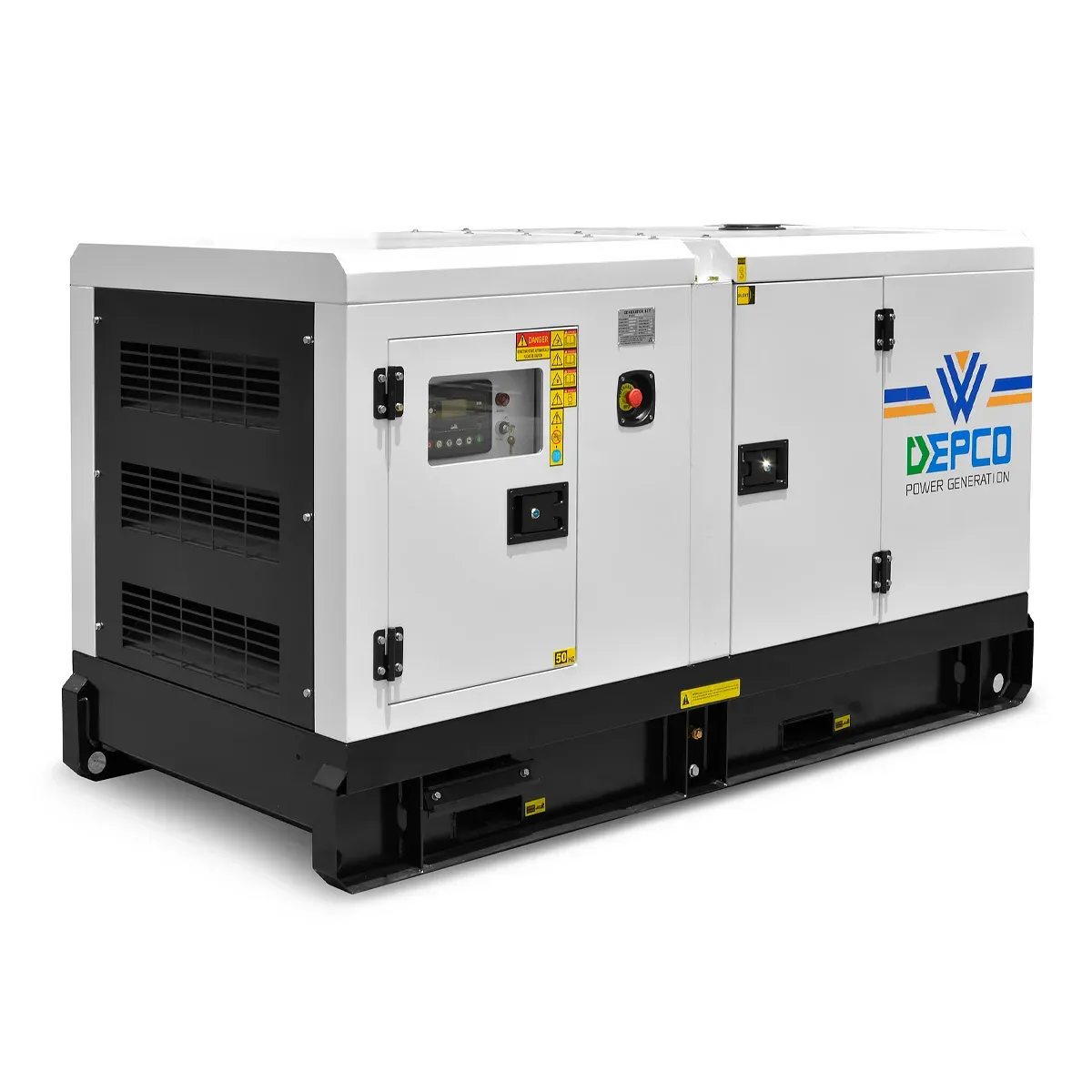

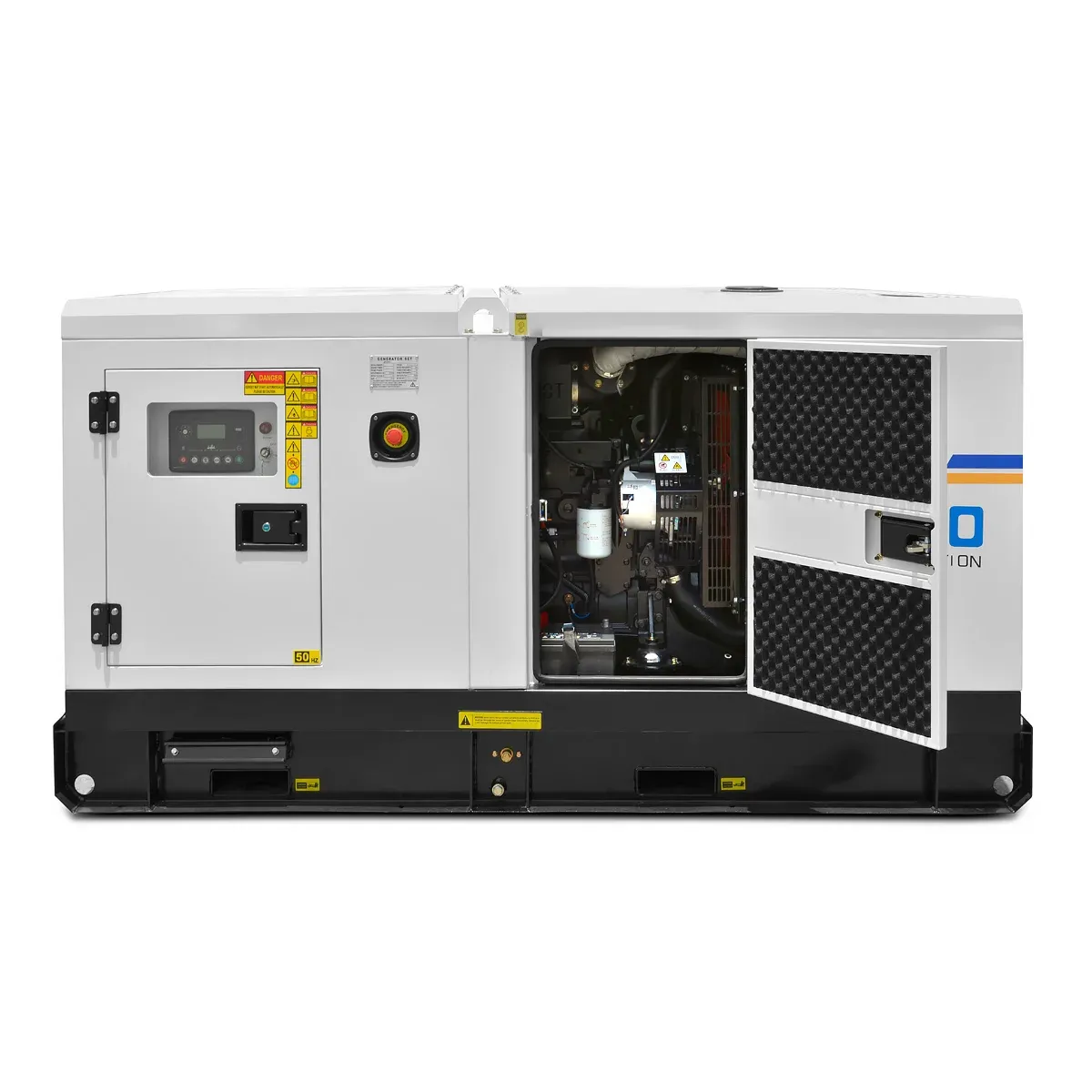

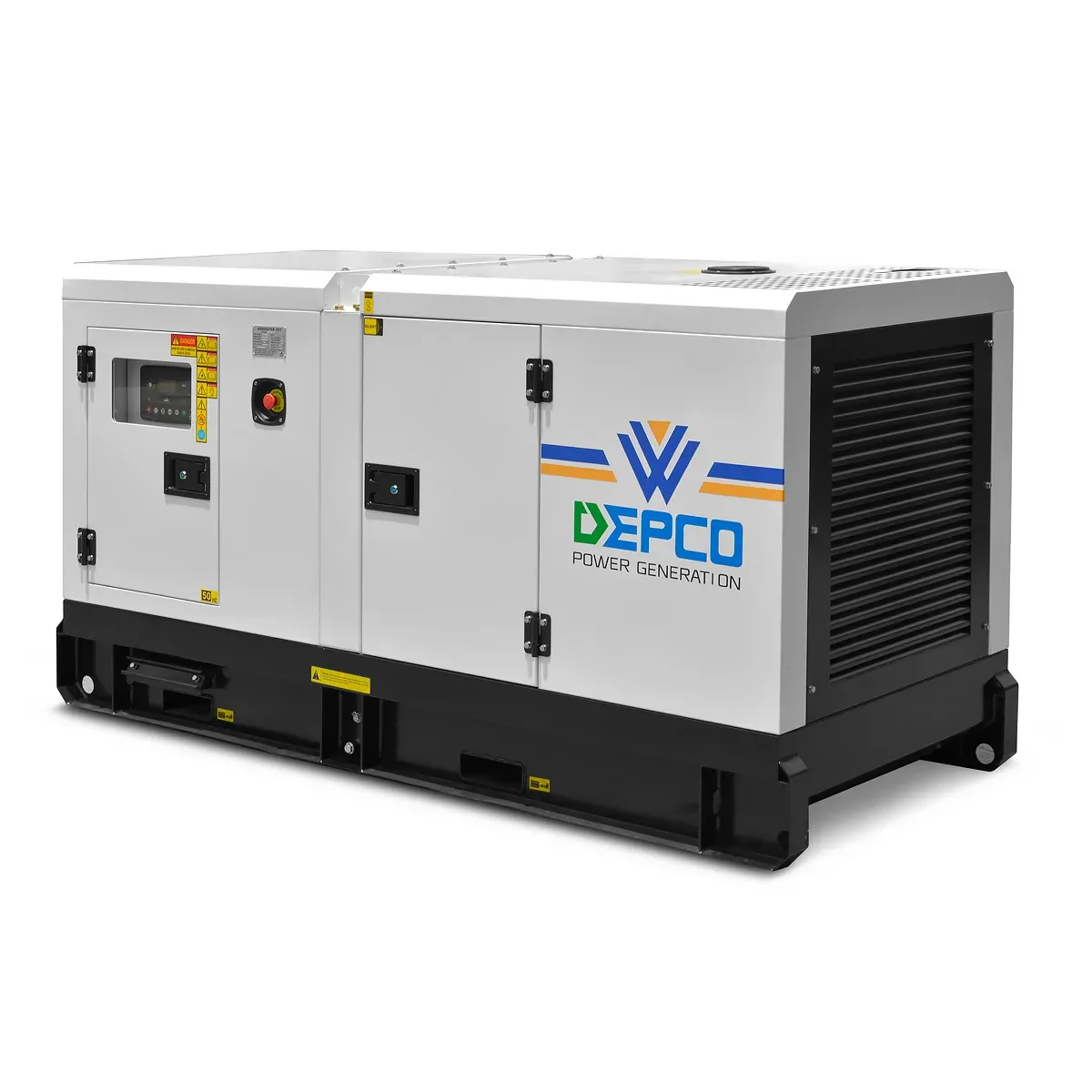

DPK-DC-70

Ensure uninterrupted performance with the DPK-DC-70 Diesel Generator, designed for efficiency, durability, and quiet operation. With a robust 63 kVA output at 50 Hz, this generator is built to meet the demands of both commercial and industrial users who value performance and peace of mind. Why Choose the DPK-DC-70 Diesel Generator? Low Noise Operation Equipped with advanced air intake and exhaust silencing systems, this generator is ideal for noise-sensitive environments. Advanced Vibration Control Engineered with high-performance vibration damping to ensure smoother operation and reduce mechanical wear, extending lifespan. Reliable Emergency Power Delivers rapid backup during power failures, keeping essential operations running without disruption. Ideal for Quiet Environments Perfect for hospitals, hotels, libraries, and executive offices where noise must be kept to a minimum. Consistent Power for Critical Operations Built to meet the demands of mission-critical applications like healthcare facilities, data centers, and precision manufacturing.

<table style="margin-bottom: 10px; width: 55.5664%;"> <thead> <tr> <th style="background-color: rgb(217, 220, 221); width: 100.014%; text-align: left;" colspan="4" scope="row">Generating Set Model</th> </tr> </thead> <tbody> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Output Rating</th> <td style="width: 17.9963%;">PRIME</td> <td style="width: 20.5937%;">STANDBY</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">50 HZ 380-415V, 1500 RPM</th> <td style="width: 17.9963%;">63 KVA</td> <td style="width: 20.5937%;">69 KVA</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row"></th> <td style="width: 17.9963%;">50 KW</td> <td style="width: 20.5937%;">55 KW</td> </tr> <tr> <th style="background-color: rgb(226, 228, 229); text-align: left; width: 100.014%;" colspan="4" scope="row">Engine</th> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Engine Make</th> <td colspan="2" style="width: 38.59%;">CUMMINS</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Engine Model</th> <td colspan="2" style="width: 38.59%;">4BTA3 . 9-G2</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Governing Type</th> <td colspan="2" style="width: 38.59%;">Electrical</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Number of Cylinders</th> <td colspan="2" style="width: 38.59%;">4</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Cylinder Arrangement</th> <td colspan="2" style="width: 38.59%;">In-line</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Bore and Stroke (mm)</th> <td colspan="2" style="width: 38.59%;">102 x 120</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Displacement</th> <td colspan="2" style="width: 38.59%;">3.9 L</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Aspiration</th> <td colspan="2" style="width: 38.59%;">Turbocharged & Aftercooled</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Cycle</th> <td colspan="2" style="width: 38.59%;">4 Stroke</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Compression Ratio</th> <td colspan="2" style="width: 38.59%;">17.3:1</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Cooling System</th> <td colspan="2" style="width: 38.59%;">Water-Cooling</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Frequency & Engine Speed</th> <td colspan="2" style="width: 38.59%;">50 HZ & 1500 RPM</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row"></th> <td style="width: 17.9963%;">PRIME</td> <td style="width: 20.5937%;">STANDBY</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Gross Engine Power kWm</th> <td style="width: 17.9963%;">58 kWm</td> <td style="width: 20.5937%;">64 kWm</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Fuel Consumption @ 100% L/hr</th> <td style="width: 17.9963%;">15</td> <td style="width: 20.5937%;">17</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Fuel Consumption @ 50% L/hr</th> <td style="width: 17.9963%;">8</td> <td style="width: 20.5937%;">-</td> </tr> <tr> <th style="background-color: rgb(217, 220, 221); width: 100.014%; text-align: left;" colspan="4" scope="row">Alternator Data</th> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Make</th> <td colspan="2" style="width: 38.59%;">LEROY SOMER</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Model</th> <td colspan="2" style="width: 38.59%;">LSA 44.3 S2</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">No. of Bearings</th> <td colspan="2" style="width: 38.59%;">1</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Insulation Class</th> <td colspan="2" style="width: 38.59%;">H</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Wires</th> <td colspan="2" style="width: 38.59%;"></td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Ingress Protection</th> <td colspan="2" style="width: 38.59%;">IP23</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Excitation System</th> <td colspan="2" style="width: 38.59%;">Shunt</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Voltage</th> <td colspan="2" style="width: 38.59%;">±1%</td> </tr> <tr> <th style="background-color: rgb(217, 220, 221); width: 100.014%; text-align: left;" colspan="4" scope="row">Dimension & Weight</th> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Length mm</th> <td colspan="2" style="width: 38.59%;">2400</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Width mm</th> <td colspan="2" style="width: 38.59%;">1000</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Height mm</th> <td colspan="2" style="width: 38.59%;">1250</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Weight*kg</th> <td colspan="2" style="width: 38.59%;">1145</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Fuel Tank Capacity</th> <td colspan="2" style="width: 38.59%;">90 L</td> </tr> <tr> <th style="background-color: rgb(217, 220, 221); width: 100.014%; text-align: left;" colspan="4" scope="row">Control Panel</th> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Make</th> <td colspan="2" style="width: 38.59%;">DEEP SEA</td> </tr> <tr> <th style="text-align: left; width: 61.4236%;" colspan="2" scope="row">Model</th> <td colspan="2" style="width: 38.59%;">DSE6120</td> </tr> </tbody> </table>

DPK-DC-70

Select Quantity

Ensure uninterrupted performance with the DPK-DC-70 Diesel Generator, designed for efficiency, durability, and quiet operation. With a robust 63 kVA output at 50 Hz, this generator is built to meet the demands of both commercial and industrial users who value performance and peace of mind. Why Choose the DPK-DC-70 Diesel Generator? Low Noise Operation Equipped with advanced air intake and exhaust silencing systems, this generator is ideal for noise-sensitive environments. Advanced Vibration Control Engineered with high-performance vibration damping to ensure smoother operation and reduce mechanical wear, extending lifespan. Reliable Emergency Power Delivers rapid backup during power failures, keeping essential operations running without disruption. Ideal for Quiet Environments Perfect for hospitals, hotels, libraries, and executive offices where noise must be kept to a minimum. Consistent Power for Critical Operations Built to meet the demands of mission-critical applications like healthcare facilities, data centers, and precision manufacturing.

Generating Set Model
Output Rating	PRIME	STANDBY
50 HZ 380-415V, 1500 RPM	63 KVA	69 KVA
	50 KW	55 KW
Engine
Engine Make	CUMMINS
Engine Model	4BTA3 . 9-G2
Governing Type	Electrical
Number of Cylinders	4
Cylinder Arrangement	In-line
Bore and Stroke (mm)	102 x 120
Displacement	3.9 L
Aspiration	Turbocharged & Aftercooled
Cycle	4 Stroke
Compression Ratio	17.3:1
Cooling System	Water-Cooling
Frequency & Engine Speed	50 HZ & 1500 RPM
	PRIME	STANDBY
Gross Engine Power kWm	58 kWm	64 kWm
Fuel Consumption @ 100% L/hr	15	17
Fuel Consumption @ 50% L/hr	8	-
Alternator Data
Make	LEROY SOMER
Model	LSA 44.3 S2
No. of Bearings	1
Insulation Class	H
Wires
Ingress Protection	IP23
Excitation System	Shunt
Voltage	±1%
Dimension & Weight
Length mm	2400
Width mm	1000
Height mm	1250
Weight*kg	1145
Fuel Tank Capacity	90 L
Control Panel
Make	DEEP SEA
Model	DSE6120

DPK-DC-70

DPK-DC-70

Select Quantity

Overview

Product Specifications

Kindly contact us to get technical details for a product tailored for your project requirements

Download More Details
