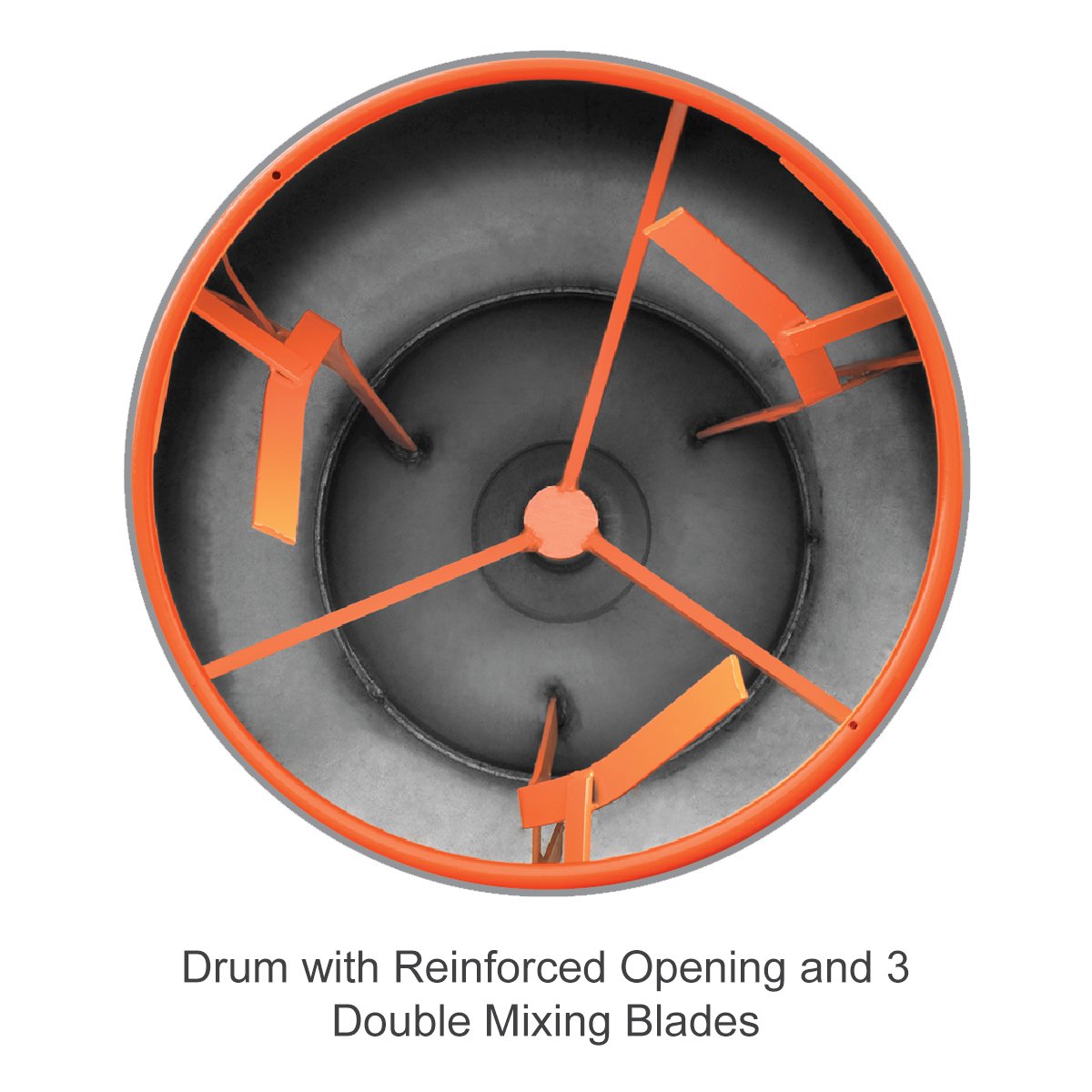

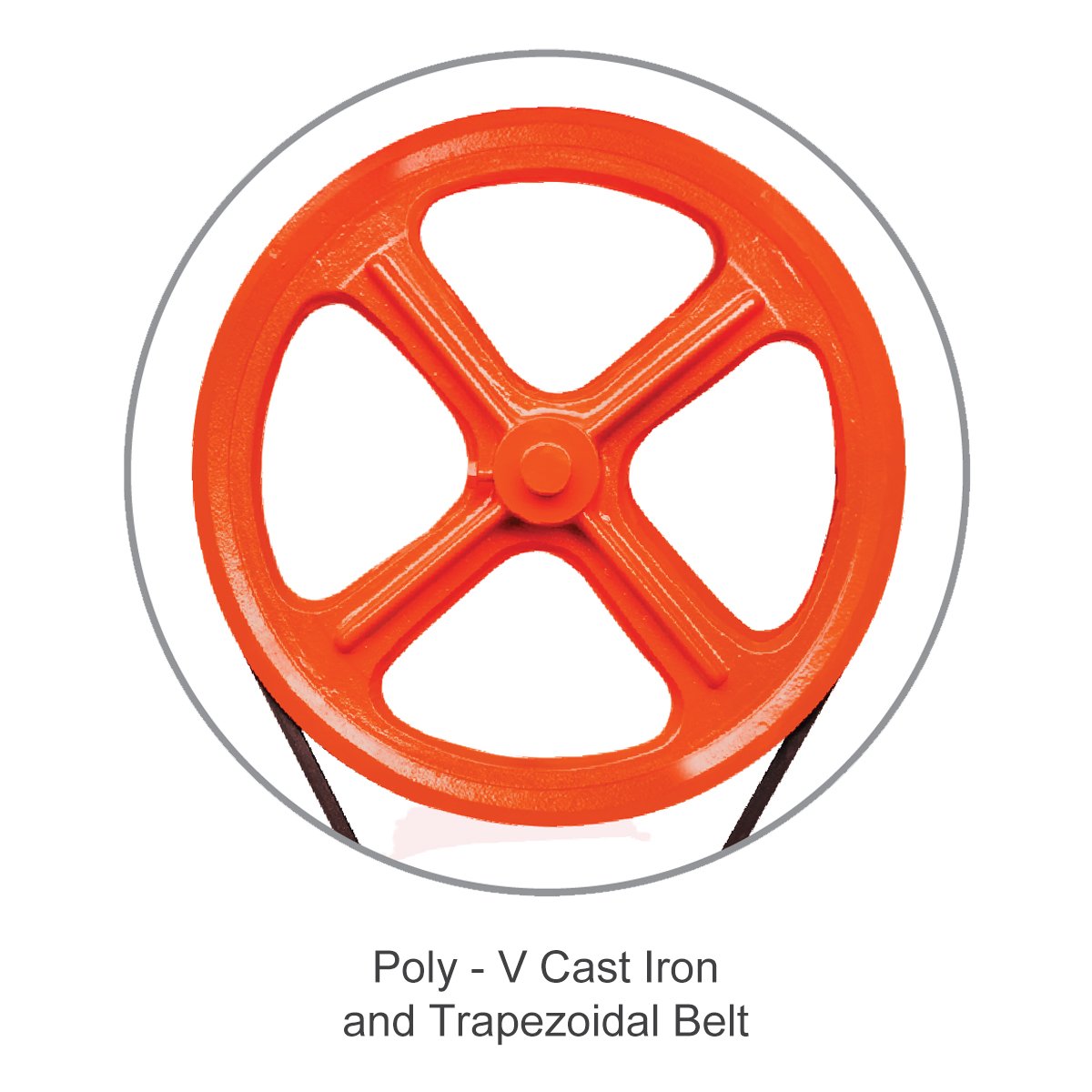

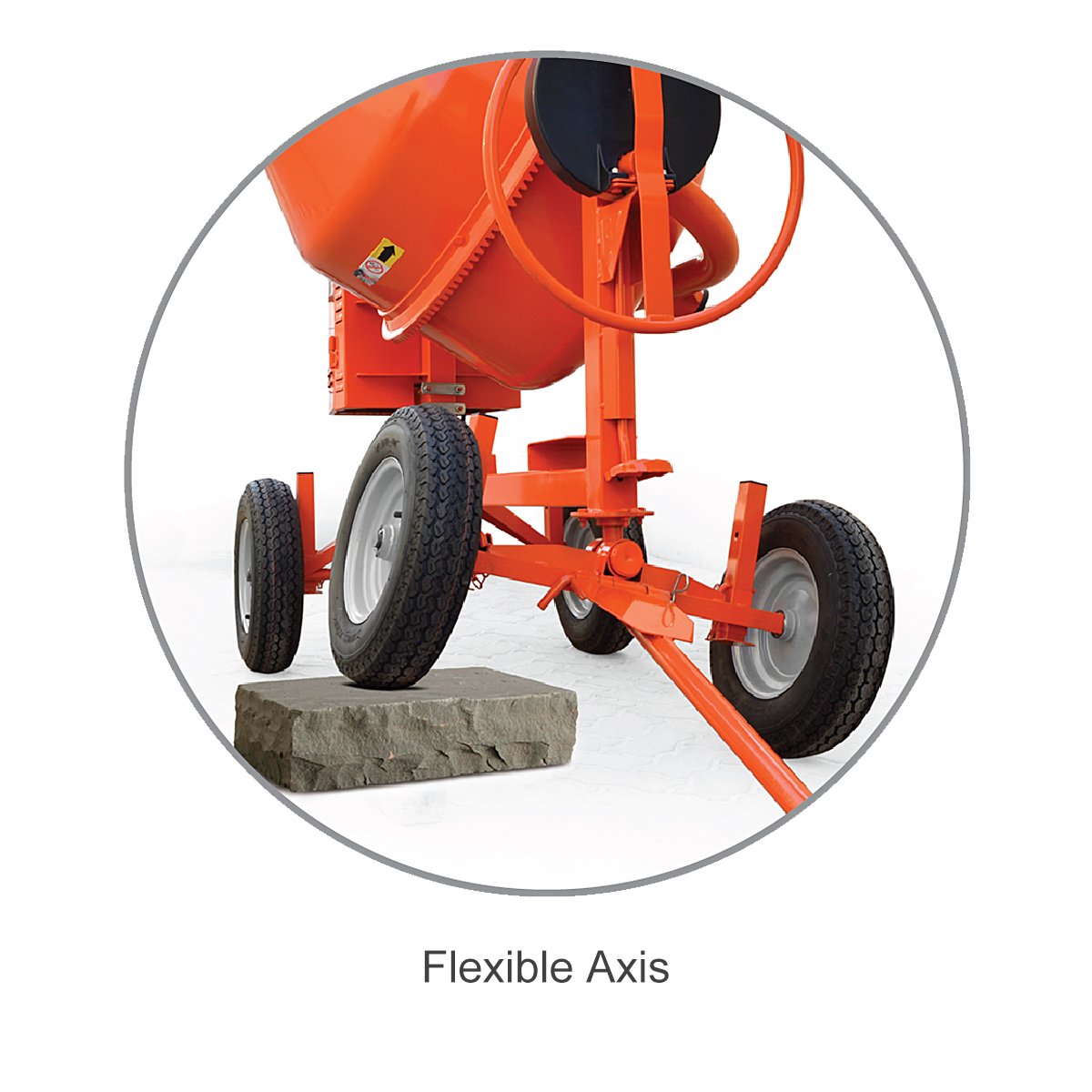

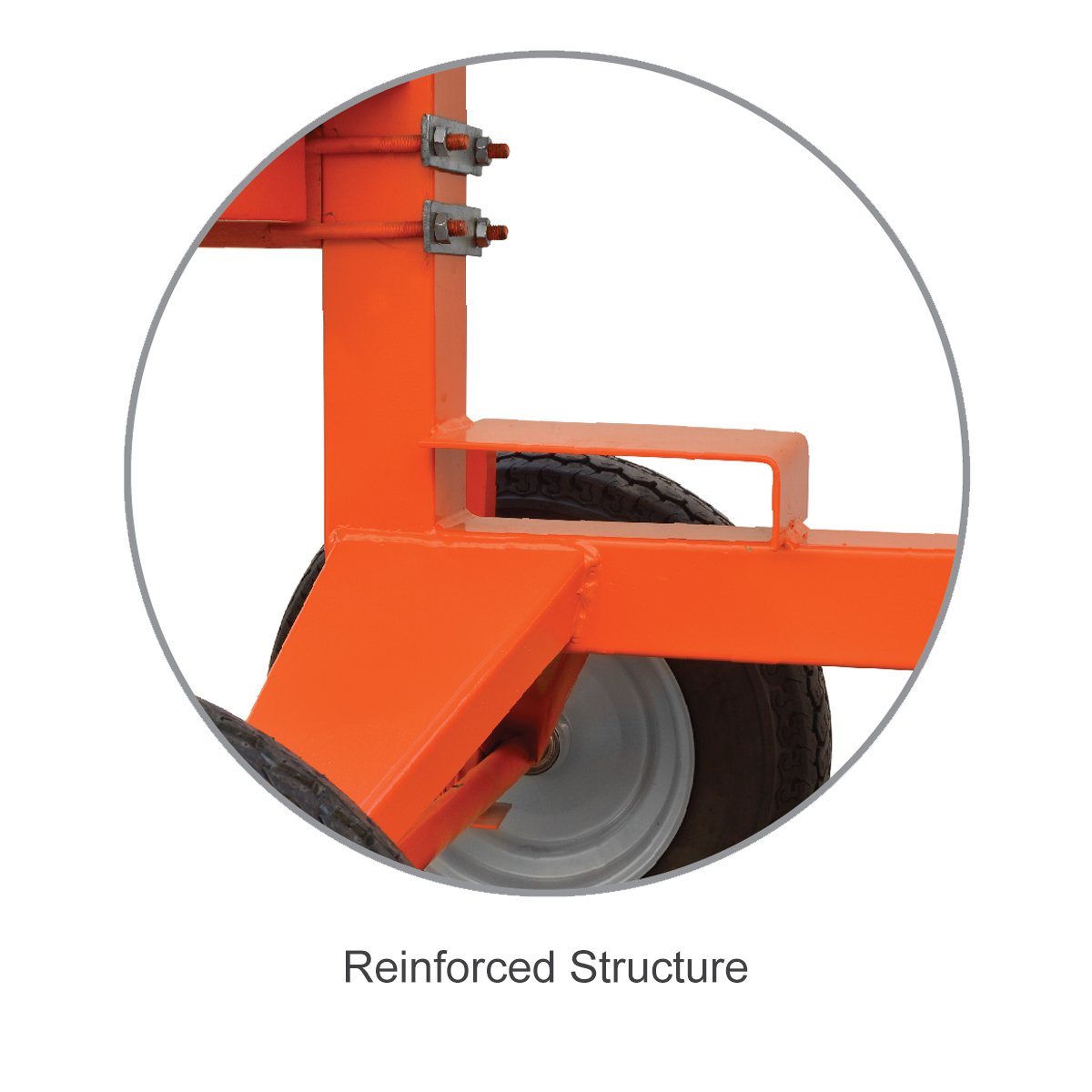

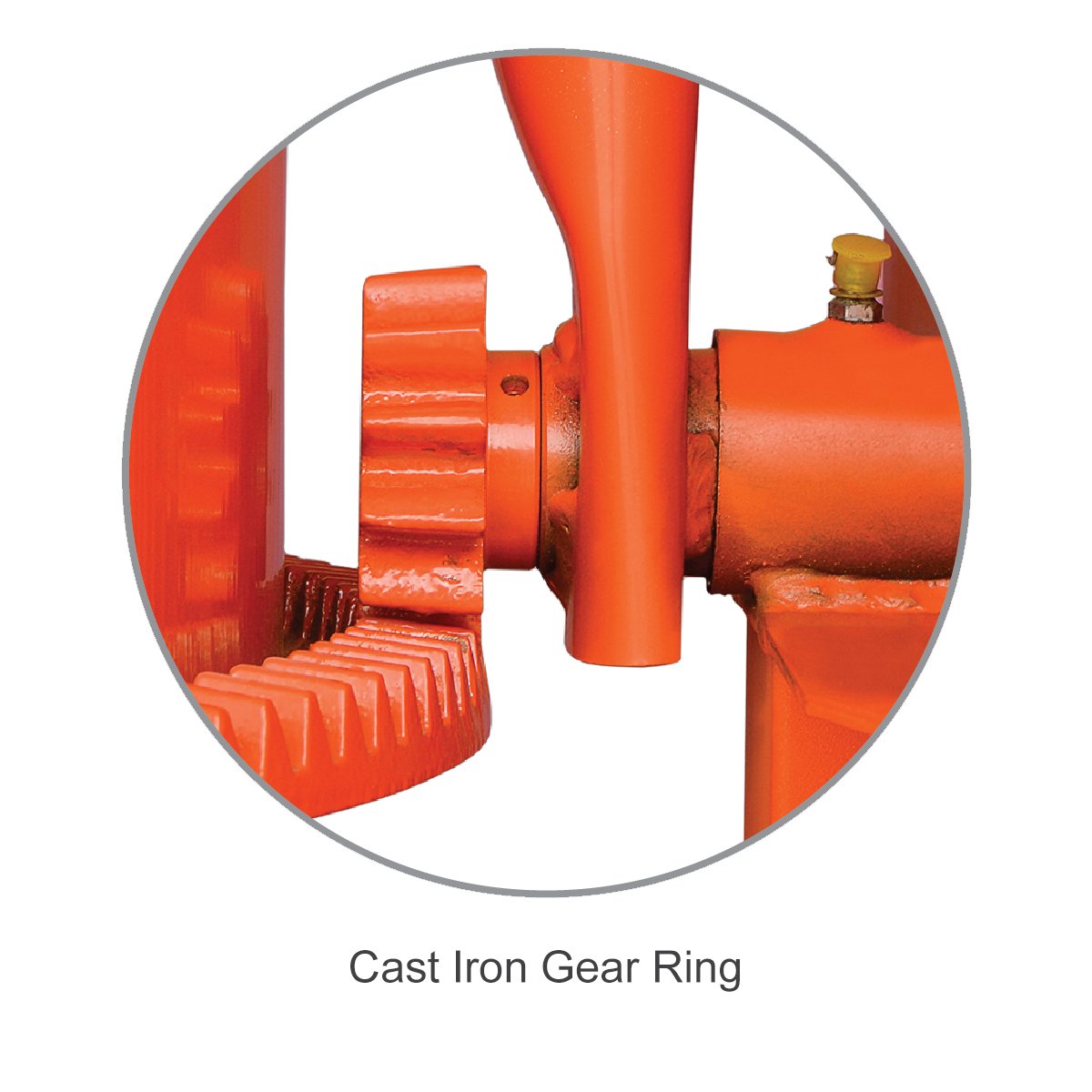

<p>Drum with Reinforced Opening and 3 Double Mixing Blades Lubrication Point Cast Iron Gear Ring Reinforced Structure Flexible Axis Poly - V Cast Iron and Trapezoidal Belt </p>
<table style="margin-bottom: 10px;"> <thead> <tr> <th style="width: 453px; text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">MODEL</span></th> <th style="background-color: #d9dcdd; width: 453px; text-align: center;" colspan="2" scope="row"><span style="font-size: 18px;">BP400 4R</span></th> <th style="width: 453px; text-align: center;" colspan="2" scope="row"><span style="font-size: 18px;">BP500 4R</span></th> </tr> </thead> <tbody> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Max. drum capacity (L)<span style="color: red;">*</span></span></th> <td><span style="font-size: 18px;">360 </span></td> <td><span style="font-size: 18px;">360</span></td> <td><span style="font-size: 18px;">450</span></td> <td><span style="font-size: 18px;">450</span></td> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Max. mixing capacity (L)<span style="color: red;">*</span></span></th> <td><span style="font-size: 18px;">300</span></td> <td><span style="font-size: 18px;">300</span></td> <td><span style="font-size: 18px;">400</span></td> <td><span style="font-size: 18px;">400</span></td> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Dosage (kg)</span></th> <td><span style="font-size: 18px;">70</span></td> <td><span style="font-size: 18px;">70</span></td> <td><span style="font-size: 18px;">125</span></td> <td><span style="font-size: 18px;">125</span></td> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Drum rotation speed (rpm)</span></th> <td><span style="font-size: 18px;">25</span></td> <td><span style="font-size: 18px;">25</span></td> <td><span style="font-size: 18px;">25</span></td> <td><span style="font-size: 18px;">25</span></td> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Production per hour (m<sup>3</sup>)</span></th> <td><span style="font-size: 18px;">2.6</span></td> <td><span style="font-size: 18px;">2.6</span></td> <td><span style="font-size: 18px;">3.3</span></td> <td><span style="font-size: 18px;">3.3</span></td> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Weight without drive unit (kg)</span></th> <td><span style="font-size: 18px;">210</span></td> <td><span style="font-size: 18px;">210</span></td> <td><span style="font-size: 18px;">240</span></td> <td><span style="font-size: 18px;">240</span></td> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Drive unit type</span></th> <td><span style="font-size: 18px;">ElectricPetrolDiesel</span></td> <td><span style="font-size: 18px;">ElectricPetrolDiesel</span></td> <td><span style="font-size: 18px;">ElectricPetrolDiesel</span></td> <td><span style="font-size: 18px;">ElectricPetrolDiesel</span></td> </tr> <tr> <th style="background-color: #cee5f6; width: 226px; text-align: left;" rowspan="3" scope="row"><span style="font-size: 18px;">Dimensions (mm)<span style="color: red;">*</span></span></th> <th style="width: 226px; text-align: left;"><span style="font-size: 18px;">Length</span></th> <td><span style="font-size: 18px;">1,800</span></td> <td><span style="font-size: 18px;">1,800</span></td> <td><span style="font-size: 18px;">1,820</span></td> <td><span style="font-size: 18px;">1,820</span></td> </tr> <tr> <th style="text-align: left;" scope="row"><span style="font-size: 18px;">Width</span></th> <td><span style="font-size: 18px;">1,100</span></td> <td><span style="font-size: 18px;">1,100</span></td> <td><span style="font-size: 18px;">1,100</span></td> <td><span style="font-size: 18px;">1,100</span></td> </tr> <tr> <th style="text-align: left;" scope="row"><span style="font-size: 18px;">Height</span></th> <td><span style="font-size: 18px;">1,650</span></td> <td><span style="font-size: 18px;">1,650</span></td> <td><span style="font-size: 18px;">1,650</span></td> <td><span style="font-size: 18px;">1,650</span></td> </tr> <tr> <th style="background-color: #e2e4e5; text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">ELECTRIC MOTOR</span></th> <th style="text-align: left; background-color: #d9dcdd; width: 226px;"><span style="font-size: 18px;">Single Phase</span></th> <th style="text-align: left; background-color: #e2e4e5; width: 226px;"><span style="font-size: 18px;">Three Phase</span></th> <th style="text-align: left; background-color: #d9dcdd; width: 226px;"><span style="font-size: 18px;">Single Phase</span></th> <th style="text-align: left; background-color: #e2e4e5; width: 226px;"><span style="font-size: 18px;">Three Phase</span></th> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Voltage (V)</span></th> <td><span style="font-size: 18px;">220 / 240</span></td> <td><span style="font-size: 18px;">380 / 400</span></td> <td><span style="font-size: 18px;">220 / </span><span style="font-size: 18px;">240</span></td> <td><span style="font-size: 18px;">380 / </span><span style="font-size: 18px;">400</span></td> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Frequency (Hz)</span></th> <td><span style="font-size: 18px;">50</span></td> <td><span style="font-size: 18px;">50</span></td> <td><span style="font-size: 18px;">50</span></td> <td><span style="font-size: 18px;">50</span></td> </tr> <tr> <th style="background-color: #e2e4e5; text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">ENGINE</span></th> <th style="background-color: #d9dcdd; text-align: left;"><span style="font-size: 18px;">Honda</span></th> <th style="background-color: #e2e4e5; text-align: left;"><span style="font-size: 18px;">Lombardini</span></th> <th style="text-align: left; background-color: #d9dcdd;"><span style="font-size: 18px;">Honda</span></th> <th style="text-align: left; background-color: #e2e4e5;"><span style="font-size: 18px;">Lombardini</span></th> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Model</span></th> <td><span style="font-size: 18px;">GX 160</span></td> <td><span style="font-size: 18px;">15 LD 225</span></td> <td><span style="font-size: 18px;">GX 160</span></td> <td><span style="font-size: 18px;">15 LD 225</span></td> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Fuel</span></th> <td><span style="font-size: 18px;">Petrol</span></td> <td><span style="font-size: 18px;">Diesel</span></td> <td><span style="font-size: 18px;">Petrol</span></td> <td><span style="font-size: 18px;">Diesel</span></td> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Displacement (cm<sup>3</sup>)</span></th> <td><span style="font-size: 18px;">163</span></td> <td><span style="font-size: 18px;">224</span></td> <td><span style="font-size: 18px;">163</span></td> <td><span style="font-size: 18px;">224</span></td> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Power (kW / HP)</span></th> <td><span style="font-size: 18px;">3.6 / 4.8</span></td> <td><span style="font-size: 18px;">3.5 / 4.8</span></td> <td><span style="font-size: 18px;">3.6 / 4.8</span></td> <td><span style="font-size: 18px;">3.5 / 4.8</span></td> </tr> <tr> <th style="text-align: left;" colspan="2" scope="row"><span style="font-size: 18px;">Weight (kg)</span></th> <td><span style="font-size: 18px;">15.1</span></td> <td><span style="font-size: 18px;">28.0</span></td> <td><span style="font-size: 18px;">15.1</span></td> <td><span style="font-size: 18px;">28.0</span></td> </tr> </tbody> </table>
Drum with Reinforced Opening and 3 Double Mixing Blades Lubrication Point Cast Iron Gear Ring Reinforced Structure Flexible Axis Poly - V Cast Iron and Trapezoidal Belt

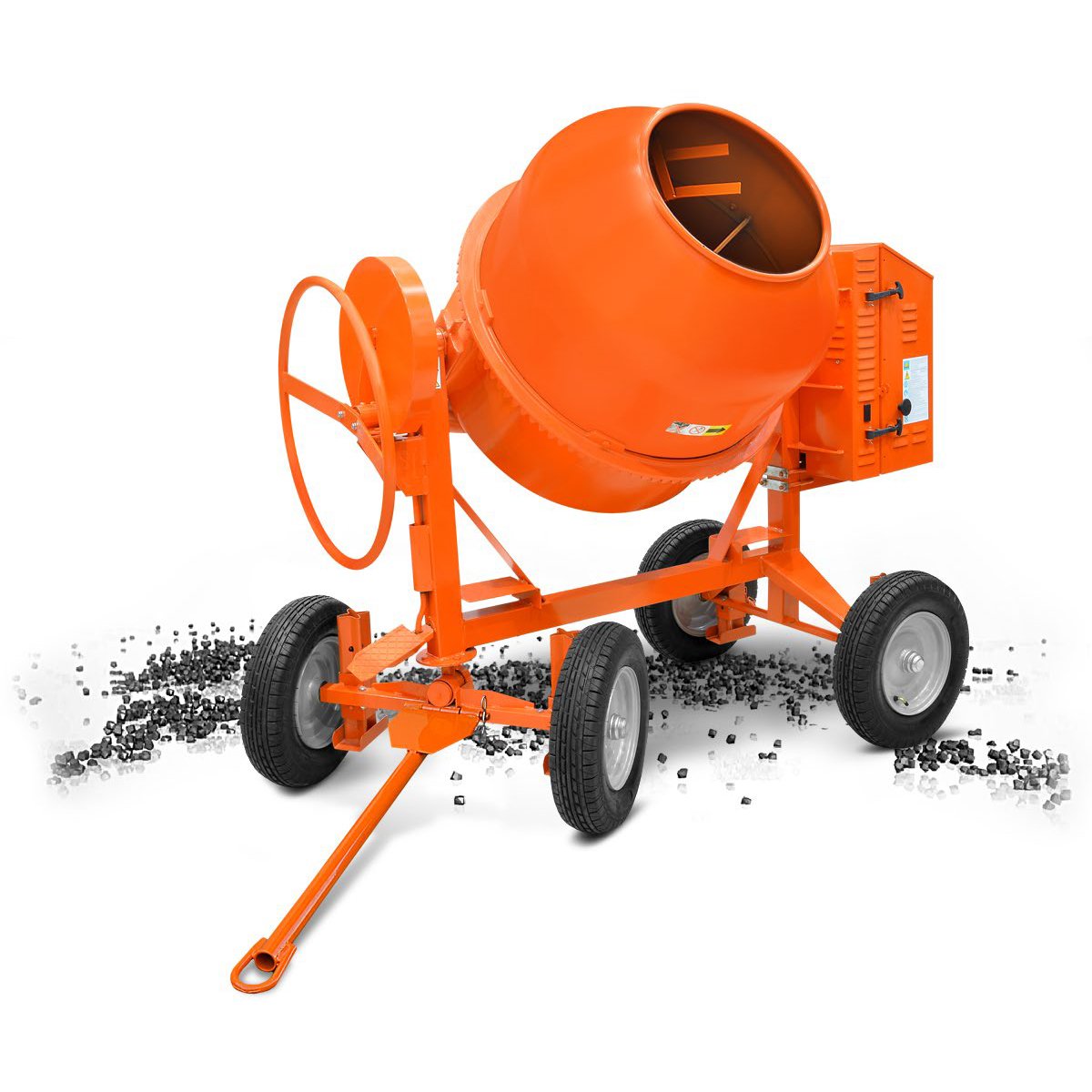

| MODEL | BP400 4R | BP500 4R | |||
|---|---|---|---|---|---|
| Max. drum capacity (L)* | 360 | 360 | 450 | 450 | |
| Max. mixing capacity (L)* | 300 | 300 | 400 | 400 | |
| Dosage (kg) | 70 | 70 | 125 | 125 | |
| Drum rotation speed (rpm) | 25 | 25 | 25 | 25 | |
| Production per hour (m3) | 2.6 | 2.6 | 3.3 | 3.3 | |
| Weight without drive unit (kg) | 210 | 210 | 240 | 240 | |
| Drive unit type | ElectricPetrolDiesel | ElectricPetrolDiesel | ElectricPetrolDiesel | ElectricPetrolDiesel | |
| Dimensions (mm)* | Length | 1,800 | 1,800 | 1,820 | 1,820 |
| Width | 1,100 | 1,100 | 1,100 | 1,100 | |
| Height | 1,650 | 1,650 | 1,650 | 1,650 | |
| ELECTRIC MOTOR | Single Phase | Three Phase | Single Phase | Three Phase | |
| Voltage (V) | 220 / 240 | 380 / 400 | 220 / 240 | 380 / 400 | |
| Frequency (Hz) | 50 | 50 | 50 | 50 | |
| ENGINE | Honda | Lombardini | Honda | Lombardini | |
| Model | GX 160 | 15 LD 225 | GX 160 | 15 LD 225 | |
| Fuel | Petrol | Diesel | Petrol | Diesel | |
| Displacement (cm3) | 163 | 224 | 163 | 224 | |
| Power (kW / HP) | 3.6 / 4.8 | 3.5 / 4.8 | 3.6 / 4.8 | 3.5 / 4.8 | |
| Weight (kg) | 15.1 | 28.0 | 15.1 | 28.0 | |
