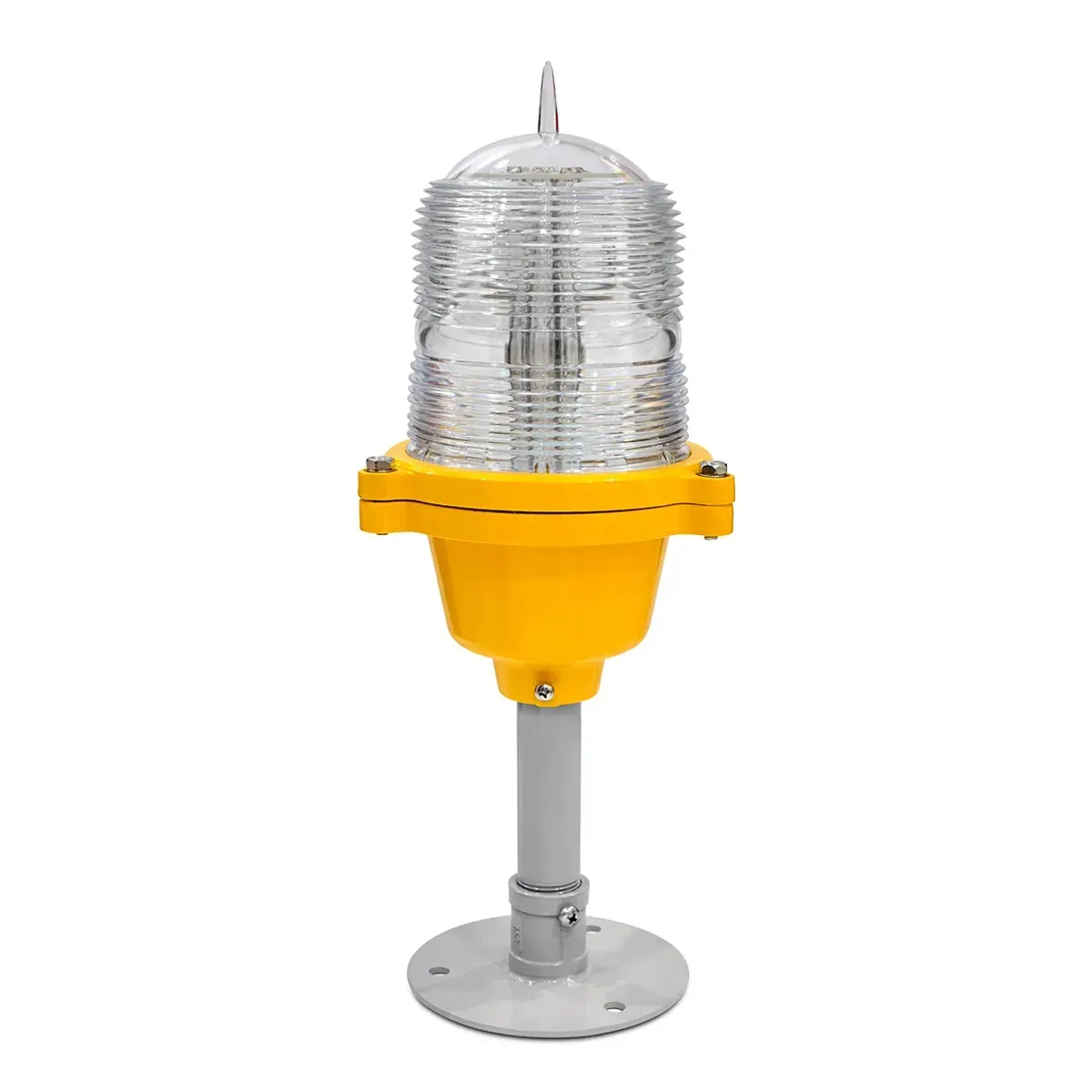

OL32 series is ICAO certified low intensity obstruction lighting model. Complying with ICAO low intensity type A&B&E and FAA L- 810 & L-810F, the effective intensity of OL32 exceeds 32.5 candelas under both steady and flashing modes. OL32S LED module consists of 8 ultra-bright Philips LEDs. The polycarbonate Fresnel lens concentrates and distributes LED light beams to output standard-compliant intensity and distribution. The efficient optical system and low-energy circuit design make the light only consume 4 watts. With a G3/4’’ universal threaded hub on the bottom, OL32S can be mounted on a conduit or with REDDOT brackets designed for towers and buildings. There is a terminal block on its power board inside for wiring. Prewired cable makes wiring easier without opening light head. OL32S single obstruction light can be used on top of structures less than 45m. In most cases, multiple OL32S single lights are installed in one or more horizontal levels for marking a structure’s outline with medium intensity obstruction lights. 8 pcs of 0.5 W Philips LEDs, reliable light source ensures long lifespan The efficient optical design provides excellent light distribution Internal LED driver and constant current regulator make the light illuminate steadily 96% more energy-saving than traditional 100W incandescent light bulb PCB integrated LED module and circuit provide better vibration resistant than E27 type GE polycarbonate dome, UV-stabilized Bird spike for preventing birds from landing and nesting Aluminum base with powder painted, corrosion-resistant Silicon gasket enhances waterproof G3/4’’ threaded bottom entry for easily mounting Stainless steel safety rope protects light head from fall-off during maintenance Automatically off if continue working 18 hours IP67 ON-OFF switch for protecting the battery from overdischarging Built-in 6-pin terminal block for connecting power and alarm Prewired cable for easy wiring job without opening light head Built-in photocell for auto on/off is available Both NO and NC dry alarm contacts are available Protection: Polarity reverse, overvoltage and short-circuit
